1500x3000 fiber laser cutting machine

1. High cutting speed, twice as much as co2 laser cutting machine with the same power.

2. Extremely cutting precision can up to ±0.02mm

3. High stability, twice lifetime of key components can reach 10000 hours, save cost

4. Low use cost. The total consumption of the whole machine is only 20%-30% of co2 laser cutting machine

5. Low maintenance cost, fiber optical transmission no need reflection lens, save cost than plasma cutting machine and co2 laser.

6. Heavy industry steel welded frame, with aging treatment and high temperature quenching treatment

7. Aluminum alloy gantry with light weight to ensure move fast. Besides, aluminum alloy with greater hardness than aluminum, no deformation after long time work.

# CE certifications

# 1500*3000*200mm

# Cypcut 1000S control system

# MAX 1000w power

# Raytools cutting head

# Whole cast steel structure

# Cast aluminum gantry

# Japan Fuji servo 1000w for X, Y axis, 450W for Z axis

# YYC gear transmission from Taiwan for X, Y axis, Taiwan TBI ball screw for Z axis

# Taiwan Hiwin rail guide

# Japan Shimpo reducer

# HL-1000 water chiller

# Omron limit switch

# Schneider electronics from France

# Auto lubricating system

# AC380V/50HZ/3 phase

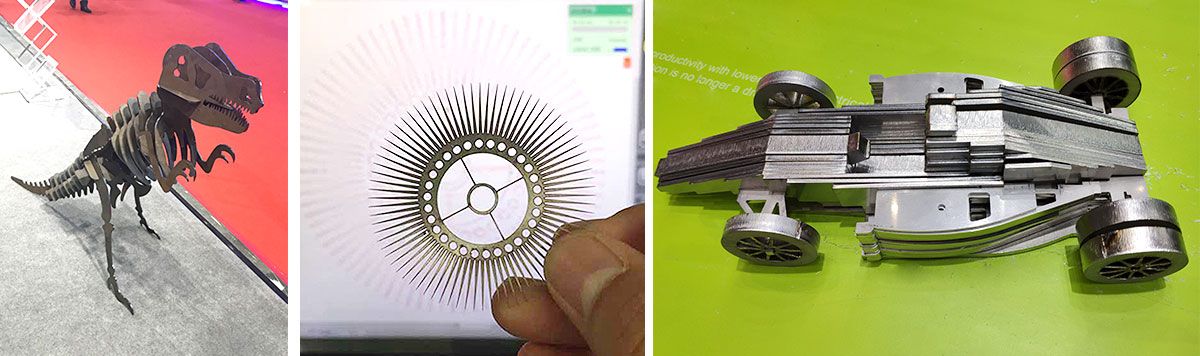

Application industry:

Sheet metal processing, advertising sign production, cabinet electrical cabinets, mechanical parts, kitchenware, sanitary ware, auto parts, machinery manufacturing, metal crafts, saw blades, electrical parts,glasses industry, spring sheets, circuit boards, electrical kettles, medical microelectronics, hardware, doors and windows and other industry

Application material:

stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, pickle plate, aluminum-plating Zinc plate, metallic copper and other metals.
